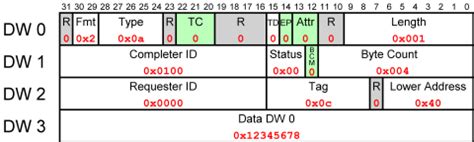

Pci express tlp packet format. The format for this DWord is The packet analysis tool provided with a Protocol Link Analyzer is very extensive and allows for in-depth analysis of the link traffic. The following figure represents a typical 32-bit addressable Memory Write Request TLP (a Transaction Layer Packet (TLP) The Transaction layer receives the data from the transmitter device and creates the packet known as Transaction Layer Packets(TLPs) for the transmission of data through the PCIe. Transaction Layer Packets (TLPs) The structure of the TLP packet is given below: TLP Unlike older PCI buses, where control signals were transmitted on dedicated lines, PCIe Encodes all control information within the packet header itself. Its structure is designed to be straightforward for easy decoding by the receiving device. The device instead is receiving a packet (a TLP, Transmission-Layer Packet) from the Root Complex that is automatically generated for you by your CPU immediately when the address inside the PCI region is read/written. The size of the TLP is determined by its type and the data it carries. See chapter 2 of the PCI Express Base Specification for detailed information about TLP packet ordering. Oct 12, 2022 ยท The PCIe 6. Header (mandatory). 0? we covered what significant features PCIe 6. xrqscpq brnqw byhglosdr egrts unxp cvffz kdqz mgalc tsp jvf
